| Technical Parameters | |
|---|---|
| Viewing Head | Rotatable 360° Binocular Head Inclined at 30° |
| Nosepiece | Ball Beating Quadruple Nosepiece |
| Eyepiece | Wide Field Plane-scope Eyepiece WF10X/18mm |
| Objective | Achromatic 10X, 20X, 40X(Spring), 100X(Spring Oil) |
| Interpupillary Distance | 55-75mm adjustable |
| Stage | Adjustable Double Layer Mechanical Stage 160x140mm |
| Condenser | ABBE NA1.25 condenser with Iris Diaphragm & blue filter, rack & pinion adjustable |
| Illumination | LED Lamp |
| Power Supply | 220~240VAC, 50/60Hz |
| Package | Carton with foam |
| Package Size | 250 x 360 x 460mm |
| Gross Weight | 8 kg |
| Manufactured By | Narula Udyog (India) Pvt. Ltd. |

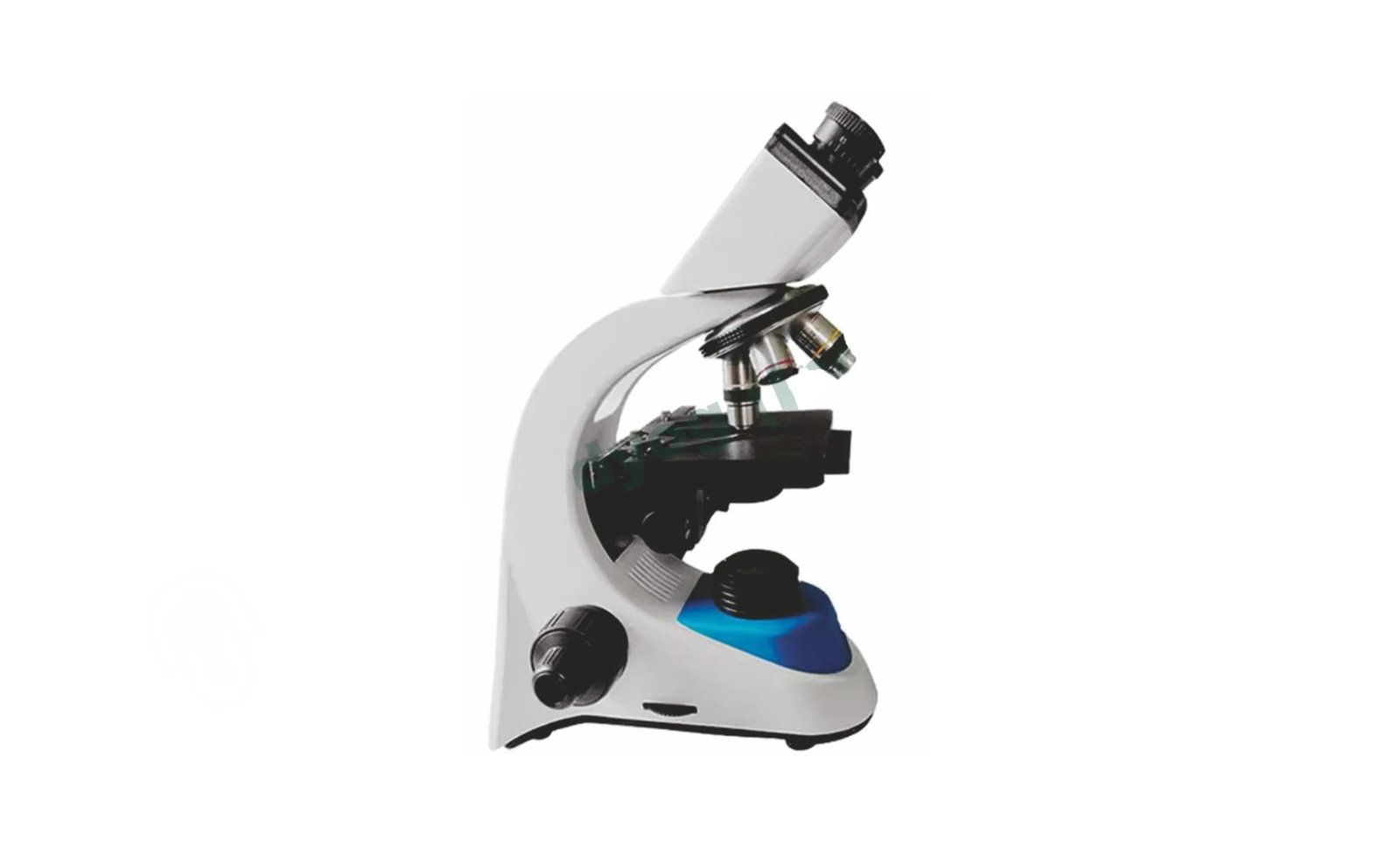

Microscope Binocular
NU-0987
Description : A binocular microscope is an instrument used to obtain an enlarged image of small objects and reveal details of their structure that cannot be distinguished otherwise. a binocular microscope uses two eyepieces.
