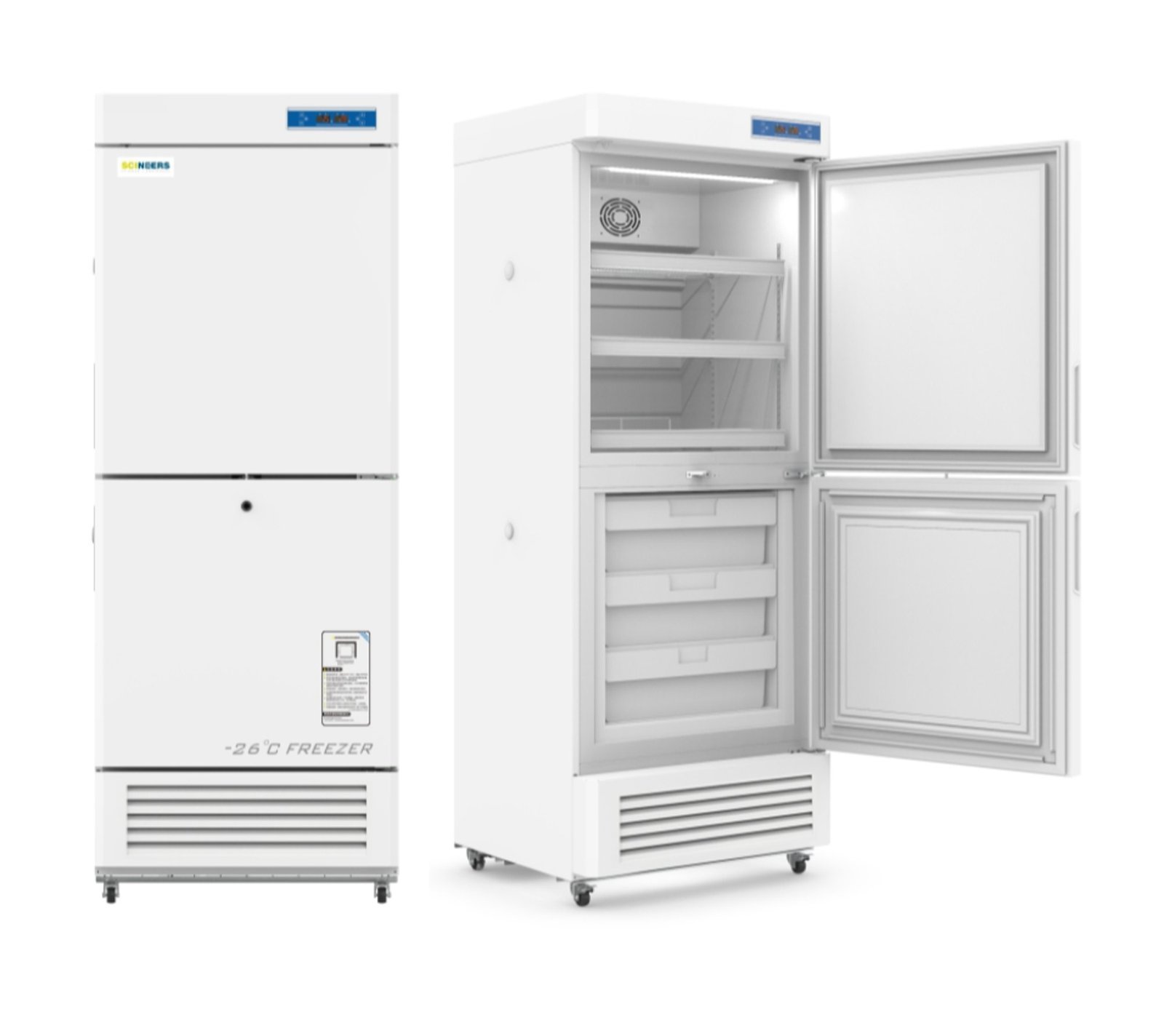

Combined Refrigerator and Freezer 2~8°C/-25°C

Combined Refrigerator and Freezer 2~8°C/-25°C

NE-KYCD300

Application:

Suitable for hospitals, blood banks, epidemic prevention, animal husbandry areas, pharmaceutical companies and research institutes. Designed to store pharmaceuticals, medicine, vaccines, biological materials, testing reagents and laboratory materials.

Temperature Control:

  • Microprocessor control, Large LED display inner temperature clearly, and with easy viewing.
  • The inner temperature can be adjustable at the range of 2°C~8°C and -10°C~ -25°C, with an increment of 0.1.

Safety Control:

Malfunction Alarms: High temperature alarm, low temperature alarm, Power failure alarm, Door jammed, low voltage of backup battery. Over temperature alarm system, set the alarm
temperature as requirements.

Three Alarming Methods: Buzzer alarming, digital flashing alarming and Remote alarm.

Protection function: Power-on delay, Shutdown intervals.

Chart Temperature Recorder (Optional).

Optional

 Controller            LCD display controller with recorder

Technical Data

Model NE-KYCD-300
Technical Data Cabinet Type Vertical
Climate Class ST
Cooling Type REF: Forced air cooling; FREEZER: Manual
Defrost Mode Auto
Refrigerant HC,R600a
Performance Cooling performance(℃) 4/-25
Temperature Range(℃) REF: 2～8；FREEZER:-10～-25
Material Interior Galvanized steel powder coating（white）
Exterior Galvanized steel powder coating（white)
Control Controller Microprocessor
Display LCD
Alarm Audible
Dimensions Capacity(L) REF:200L；FREEZER:100L
Net/Gross Weight(approx) 88.5/100 (kg)
Interior Dimensions(W*D*H) REF:516×498×730mm；FREEZER:458×469×356mm
Exterior Dimensions(W*D*H) 600×609×1750mm
Packing Dimensions(W*D*H) 660x660x1840mm
Electrical Data Power Supply(V/Hz) 220V/50Hz
Power(W) 340
Functions High/Low Temperature Yes
Sensor Failure Yes
Door Ajar Yes
Lockage Yes
Inner LED light Yes
Accessories Caster Yes
Test Hole optional
Shelves REF:3,FREEZER:2
Glass Door optional
Temperature Recorder optional
