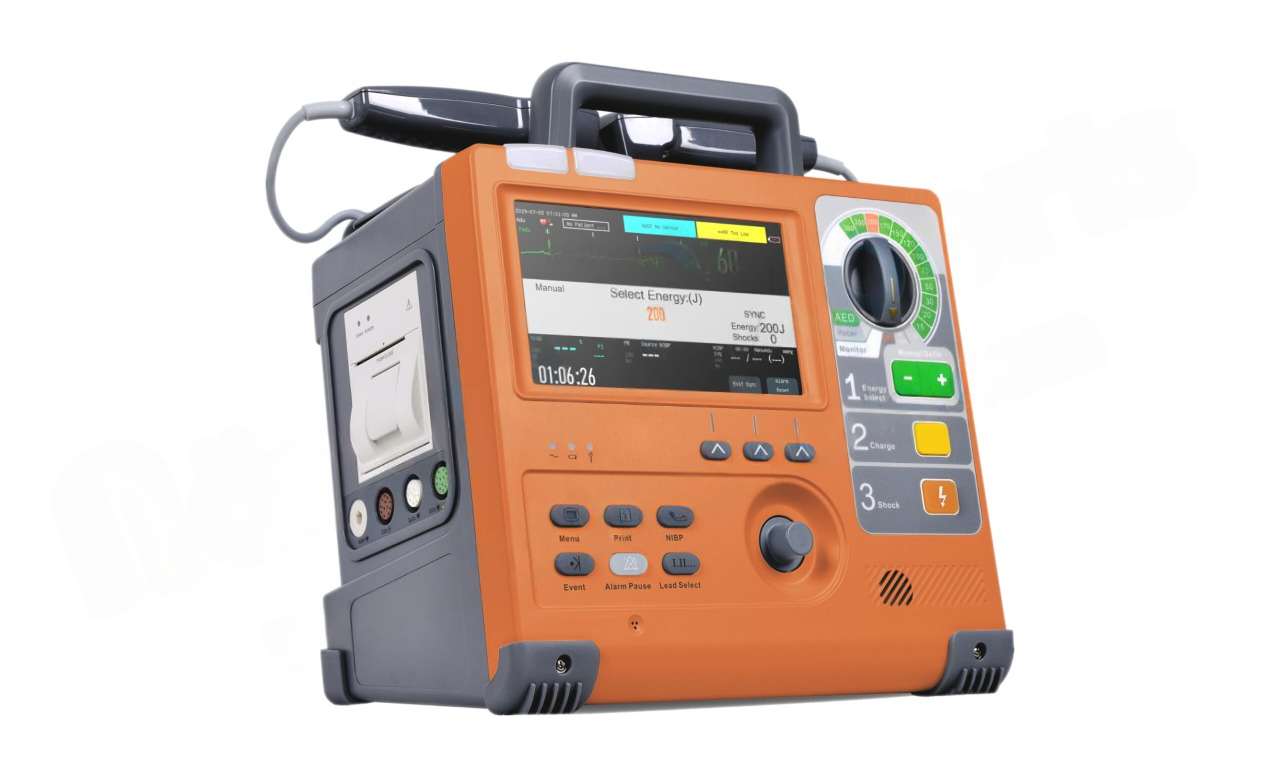

Biphasic Defibrillator Monitor

Biphasic Defibrillator Monitor
Biphasic Defibrillator Monitor - Image 2

Model No.: 70-1025

Features:

  • Biphasic Defibrillator Monitor with 7″ TFT Screen
  • AED, Pacer, RESP, Thermal Recorder available as standard.
  • Energy Range from 1 to 360 Joules
  • Monitoring Mode – min. 6hrs, Defib Mode: 210 Shocks of 360J & Pacing Mode: 4.5 hours
  • Compact & Light weight : Approx.6.5 Kgs.

Other Details:

Defibrillator:

  • Paddle Assembly: External paddle assembly with coil retractable high voltage cable Adults & Pediatric paddle integrated to the same handle


Data Storage:

  • Alarm Event : 200groups
  • Patient Event : 1000 events
  • Wave Review : 10min
  • NIBP Review : 2000groups
  • Trends : 160hrs
  • Voice Recording : Max 240mins in total

Defibrillator :

  • Operating Mode Manual Mode, AED Mode, Synchronous Defibrillation
  • Waveform Bi-phasic, Truncated exponential waveform with impedance Compensation
  • Battery Power Less than 7 seconds to 360joules with a new, fully charged battery


Optional:

  • SPO2
  • NIBP
  • EtCO2 Monitoring
Type Biphasic Defibrillators
Charging Time Less Than 6 seconds
Display 320 x 240 pixels, 7” TFT screen
Dimensions 295mm x 252mm x 316mm
Display Area 800 x 480 Resolution
Operating Mode Manual Mode, AED Mode, Synchronous Defibrillation
Energy 1 to 360 joules
Waveform Biphasic
Synchronous Energy delivery begins within 60 ms of the QRS Peak
Check Mode Manual test mode, Prints the status of
ECG Frequency Response 0.5 Hz to 40 Hz (ECG), 0.5 Hz to 30 Hz (Paddle)
ECG Patient isolation Optical isolation
ECG Lead selection Lead I, II and III
ECG Gain setting 0.5, 1.0 and 2.0
CMRR Greater Than 90 db
ECG Sweep Speed 12.5, 25.0, 50.0 mm / sec
ECG Waveform 1 ECG, 2 is 4sec delayed (cascaded)
ECG Data Output Analog output of ECG
ECG Digital filter Digital signal processing for good quality of ECG
ECG Freeze mode To freeze last 4 seconds ECG
Range 30-250 BPM
Accuracy +/- 2 BPM
Resolution 1 BPM
Tone Beep on every QRS detected
Low alarm Limit Range 30-245 (Step of 5)
High alarm Limit Range 40-250 (Step of 5)
Paper Type Thermal paper 50 / 55 mm width, 20 meters length
ECG in Defib Mode Prints 5 Seconds pre & post ECG
Print Annotates Time, Date, ECG Lead, Mode, Shock Status & Selected Energy
Delay 10 Seconds
Input 150-276VAC, 50Hz,60Hz, 12V DC for ambulance
Output 17V at 4A
Battery 12V/3.8 Ah Rechargeable
Back up time 3 hours min on full charge in ECG mode / 50 shock of 150 Joules in defib mode
Power consumption 30 Watts (max) in ECG mode
Operating Temp (-)5 Degree C, (+)50 Degree C
Heart Rate Humidity Up to 95 % non-condensing
Weight 6.5 Kgs.
